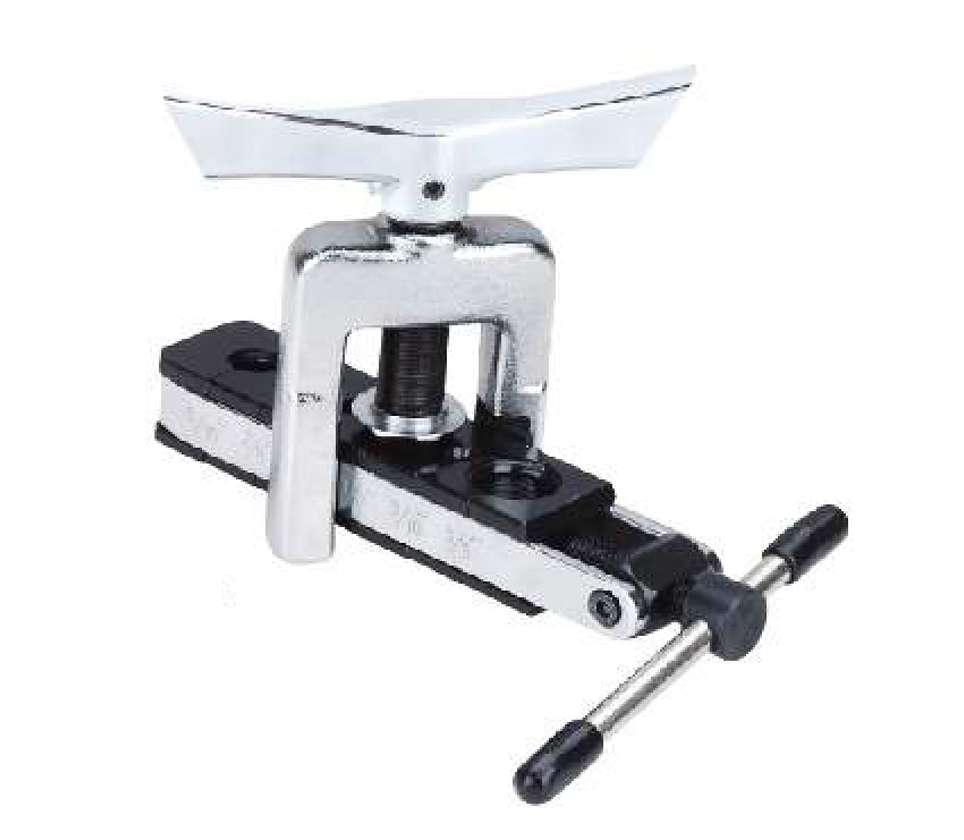

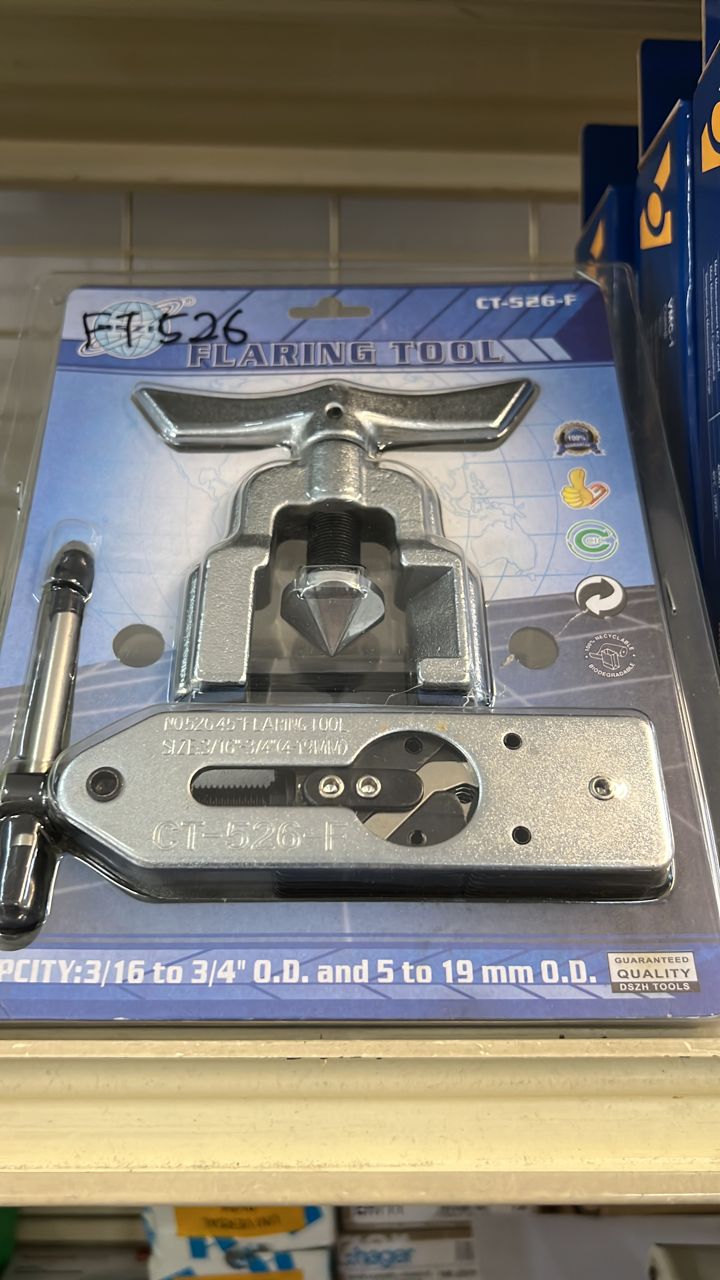

Flaring Tool (FT175,193,195,275,278,500,505,519,525,526,806,808)-V

FEATURES :

• Insert tubing into adjustable opening of tube holding assembly.
• Position end of tubing approximately 1/8″ above the surface of holder.
• Tighten clamp screw approximately 1/2 to 3/4 of a turn beyond free travel position to secure tubing.
• Be certain flaring cone surface is oiled.
• Slip yoke over tube holding assembly centerring on tubing.
• Twist yoke clockwise to lock in position. Turn yoke handle clockwise to flare.
